█ 说明：

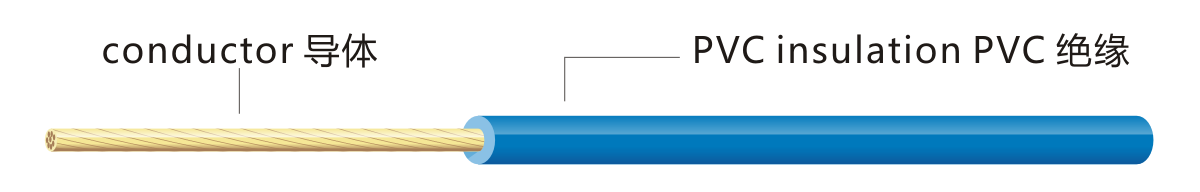

▶ 导体使用单条或多条绞线0.5-2.5㎡裸铜或镀锡铜
▶ 绝缘材料：P.V.C.
▶ 额定温度：105℃，额定电压：450/750Volts
▶ 通过CCC国家标准测试
▶ 使用标准厚度，易剥，裁断容易
▶ 具抗酸碱，耐油性，防湿防霉等特性
█ Product Description：
▶ Tinned,annealed,strnaded or solid copper conductor,0.5-2.5㎡
▶ Insulation material:P.V.C.
▶ Rated temperature:105℃,Rated voltage:450/750Volts
▶ Passes CCC test
▶ Uniform thickness of wire to ensure easy stripping and cutting
▶ Resistant to acids,oils,alkslies,moisture and fungus
|
UL STYLE & CSATYPE |
Nominal Section 标称截面 |
Conductor 导体规格 |
Insultation Thickness 绝缘厚度 |
Largest Diameter 最大外径 |
Resistance
导体电阻 |
Product Weight 成品重量 |
|
线数/线径 | ||||||
|
mm² |
No./mm |
mm |
mm |
Ω㏎ | kg/km | |
|
BVR 阻燃电线 JB8734-2012 |
1.0 |
/ |
/ |
/ |
/ | / |
| 1.5 |
/ | / | / | / | / | |
|
2.5 |
19/0.41 |
0.8 |
4.2 |
7.41 | 33.0 | |
|
4.0 |
19/0.52 |
0.8 |
4.8 |
4.61 | 49.0 | |
|
6.0 |
19/0.64 |
0.8 |
5.6 |
3.08 | 71.0 | |
|
10.0 |
49/0.52 |
1.0 |
7.6 |
1.83 | 125.5 | |
|
16.0 |
49/0.64 |
1.0 |
8.8 |
1.15 | 181.0 | |
|
25.0 |
98/0.58 |
1.2 |
11 |
0.073 | 302.0 | |
|
35.0 |
133/0.58 |
1.2 |
12.5 |
0.524 | 395.0 | |
|
50.0 |
133/0.68 |
1.4 |
14.5 |
0.378 | 544.0 | |
| 70.0 | 189/0.68 |
1.4 | 16.0 | 0.268 | 728.0 |
